rebound tonometer
Be of advantages of high accuracy, portable,
without anesthesia, without the cross-infection etc.
Product Description
rebound tonometer , portable tonometer
With vertical and horizontal two working modes, wireless output print data.
The equipment is used to measure intraocular pressure,
using the principle of: the probe hits the surfaces of different hardness at a certain speed,
has different reaction when the probe rebounds. Be of advantages of high accuracy, portable,
without anesthesia, without the cross-infection etc.
Use a very light probe to contact the cornea at the monent to measure intraocular pressure accurately.
And patients hardly feel the measure, so which does not cause corneal reflex usually.
Features :
- 1.It`s a handset device: small, portable and proven to be accurate by several independent clinical studies, which also confirms the exceptional user and patient friendliness of this device
- 2.The probe has very less contact with patient, avoiding discomfort reaction.
- 3.Automatic exist function of probe
- 4.Easy and fast measuring with outstanding accuracy and consistency without the need of anesthesia
- 5.One-time use of the probe to avoid cross-infection
- 6.Measurement can go along both in standing and lying posture
- 7.Wireless data printing
- 8.Esay to learn ,easy to use
- 9.Lightweight and handy
- 10.No anesthesia, avoiding discomfort reaction
compare to" ICARE"our advantage is :
During every measurement, there are 3 measuring datas on the disaplay,
and the machine may calculate the average data automatically as the final result.
It may store 10 medical cases of illness automatically.
Characteristics:
- 1.Measure Range :3mmHg~70mmHg
- 2.Measure Error:
- 1.5mmHg(3mmHg≤intraocular pressure≤25mmHg);
- 2.5mmHg(25mmHg3.Rating voltage: DC3V(2 AA Batteries)
- 4.Rating input power: 1VA
- 5.Net Weight: 2kg, Machine Demension : 22cm x 5.5cm x 9cm

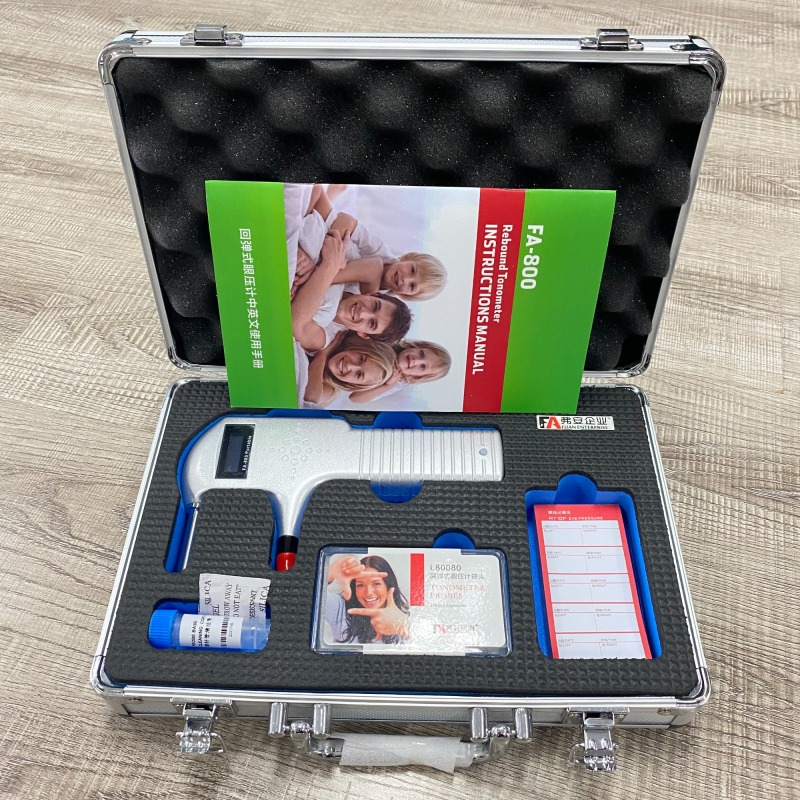

- 6.Packing comes with a nice Aluminum handcase. Gross Weight : 3.5kg, Packing Demension : 47cm x 42cm x 13cm
With Infrared Printer --- Print measring data by wireless transmission --optional

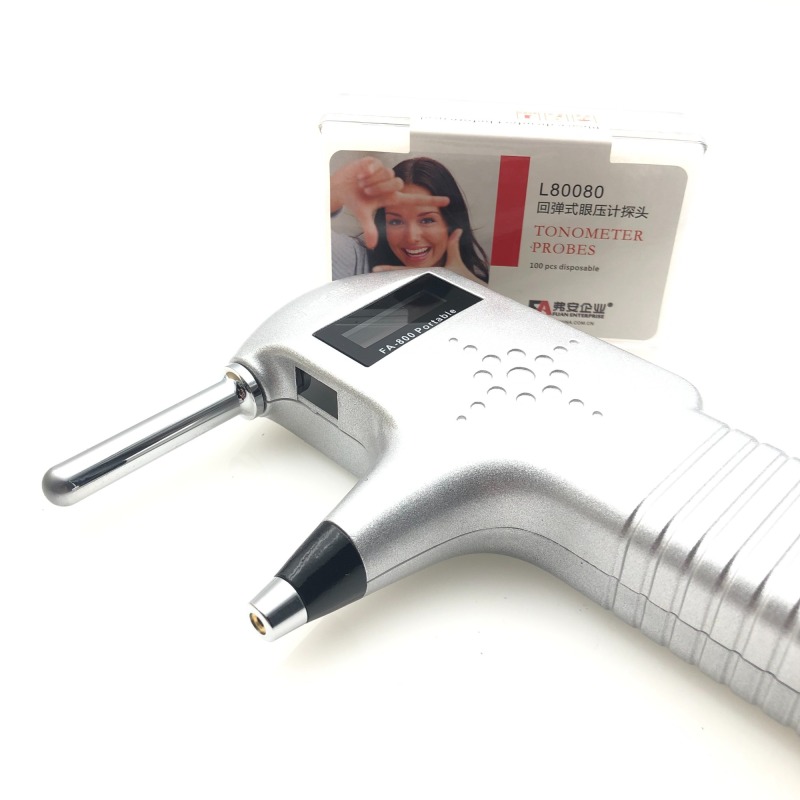

With 100 pieces of probes --- Free
Measuring Current
|
0-6A
|
Measuring Voltage
|
DC6V
|
Measuring Range
|
3mmHg~90mmHg
|
Weight
|
300g
|
Max Probe Speed
|
0.2m/s
|
Product Dimensions
|
110mmx190mmx30mm
|
Package Dimensions
|
240mmx280mmx90mm
|
Working Temperature Range
|
5℃~ 40℃
|
Working Humidity Range
|
≤80%
|
Working Atmospheric Range
|
700 hpa~1060hpa
|
Storage Temperature Range
|
-20℃~ 55℃
|
Storage Atmospheric Range
|
500 hpa~1060hpa
|
Storage Humidity Range
|
≤95%
|
Accuracy Class(3mmHg≤intraocular pressure≤25mmHg)
|
?1.5mmHg
|
Accuracy Class(25mmHg≤intraocular pressure≤70mmHg)
|
?2.5mmHg
|
Product name: |
Rebound Tonometer
|
Model Number:
|
FA800 |
TYPE: |
portable Tonometer |
Weight: |
300G |
